Customized Overwrapping Machine WBG CD380 for Medicine Boxes
This is a customized machine we sent to Thailand WBG CD380. Standard model WBG CD380 is left feeding conveyor, this new model is right feeding conveyor, to better meet customer's factory layout. Achieve fully automatic packing line.
Email: [email protected]
Product detail
Customized Overwrapping Machine WBG CD380 for Medicine Boxes
This is a customized machine we sent to Thailand WBG CD380.

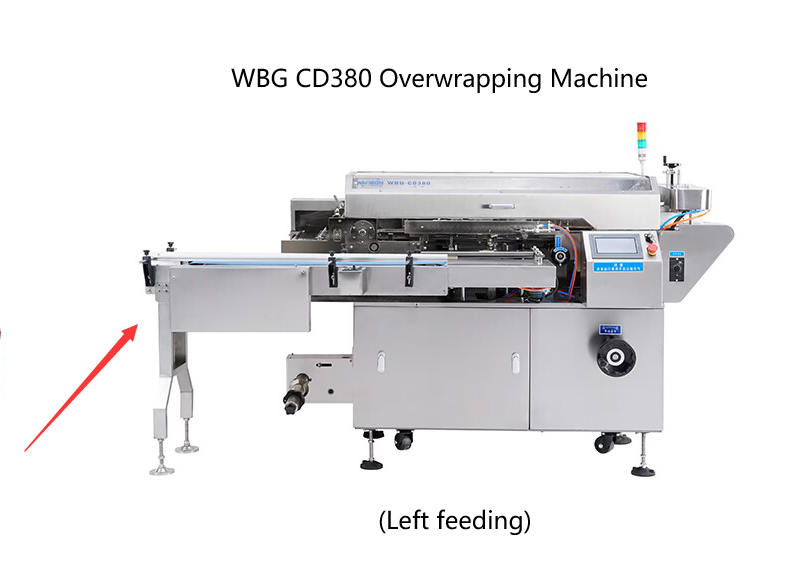

Standard model WBG CD380 is left feeding conveyor, this new model is right feeding conveyor, to better meet customer’s factory layout.
Achieve fully automatic packing line.
WBG CD380 BOPP Overwrapping Machine Parameters
| Cutter (mm) | 480 |
| Packing size range L×W×H (mm) | （10-340）×（10-150）×（10-130） |
| Packing speed (bags/min) | （20-40） |
| Packaging Materials | BOPP or PVC |
| BOPP or PVC Inner hole diameter
/thickness (mm) |
Φ75/0.021-0.028 |
| Air consumption (L/min) | (20-30） |
| Total power (kw) | 2.25 |
| Power Consumption(kw) | 1.5 |
| Noise dB(A) | <65 |
| Dimensions (mm) | 2600×1340×1364 |
| Overall weight (kg) | 1000 |
| Power supply (V/HZ) | 220V/50Hz or 380V/50HZ |
| Heat sealing temperature (℃) | 100-140 |
