Perfume Wrapping Machines WBG QD480 With Compact Surface
Suitable for three-dimensional packaging outside the box with cellophane in pharmaceutical and health care, daily chemical, food, tobacco and other industries. It can realize combination and stacking wrapping of multi-size boxes, and can be used dependently or in line. The best choice for high-speed packaging line.
Email: [email protected]
Product detail

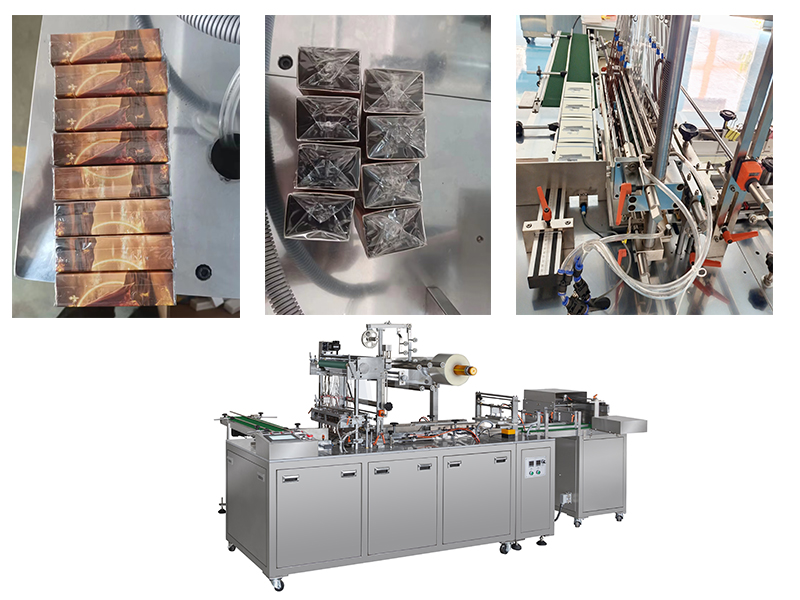

Perfume Wrapping Machines WBG QD480 With Compact Surface
Overwrapping Machine for Perfume Product Features：
- Fully servo-controlled, more convenient and quick to adjust, and the replacement of specifications can be completed within 15 minutes.
- Fully sealed packaging: waterproof, moisture-proof, anti-pollution, anti-tampering.
- Instant sealing, no piling up of materialsin the heat sealing station, similar to cold packaging, no effect on heat-sensitive products of pharmaceuticals.
- Fully automatic: automatic loading, stacking, sorting, packing, heat sealing and counting.
- Packing speed is adjusted steplessly. Changing folded board and some accessories can achieve to pack different specifications of products (length,width, height).
Overwrapping Machine MAIN CONFIGURATION
| CUTTER | 520 | 580 |
| PACKING RANGE
L×W×H（mm） |
（80-300）×（70-160）×（30-120） | （80-350）×（70-200）×（30-120） |
| SPEED | （30-45） | （30-45） |
| FILM | BOPP or PVC | BOPP or PVC |
| INNER HOLE & THICKNESS（mm） | Φ75/0.021-0.028 | Φ75/0.021-0.028 |
| AIR CONSUMPTION（L/min） | （20-30） | （20-30） |
| POWER（kw） | 3.7 | 3.7 |
| Combined noise dB(A) | <65 | <65 |
| MACHINE DIMENSION(mm) | 1905×2119×2079 | 1905×2119×2079 |
| WEIGHT（kg） | 1000 | 1000 |
| VOLTAGE（V/HZ） | 220V/50HZ | 220V/50HZ |
| TM(℃) | 100-140 | 100-140 |
Overwrapping Machine Scope of Application:
Suitable for three-dimensional packaging outside the box with cellophane in pharmaceutical and health care, daily chemical, food, tobacco and other industries. It can realize combination and stacking wrapping of multi-size boxes, and can be used dependently or in line. The best choice for high-speed packaging line.
