Vertical form fill and seal pounch packaging machines for nuts grain


Vertical form fill seal machine manufacturers-Wanbon Pack Wanbon is an industry leading manufacturer of vertical form fill seal (VFFS) equipmen ......

Email: [email protected]


Product detail

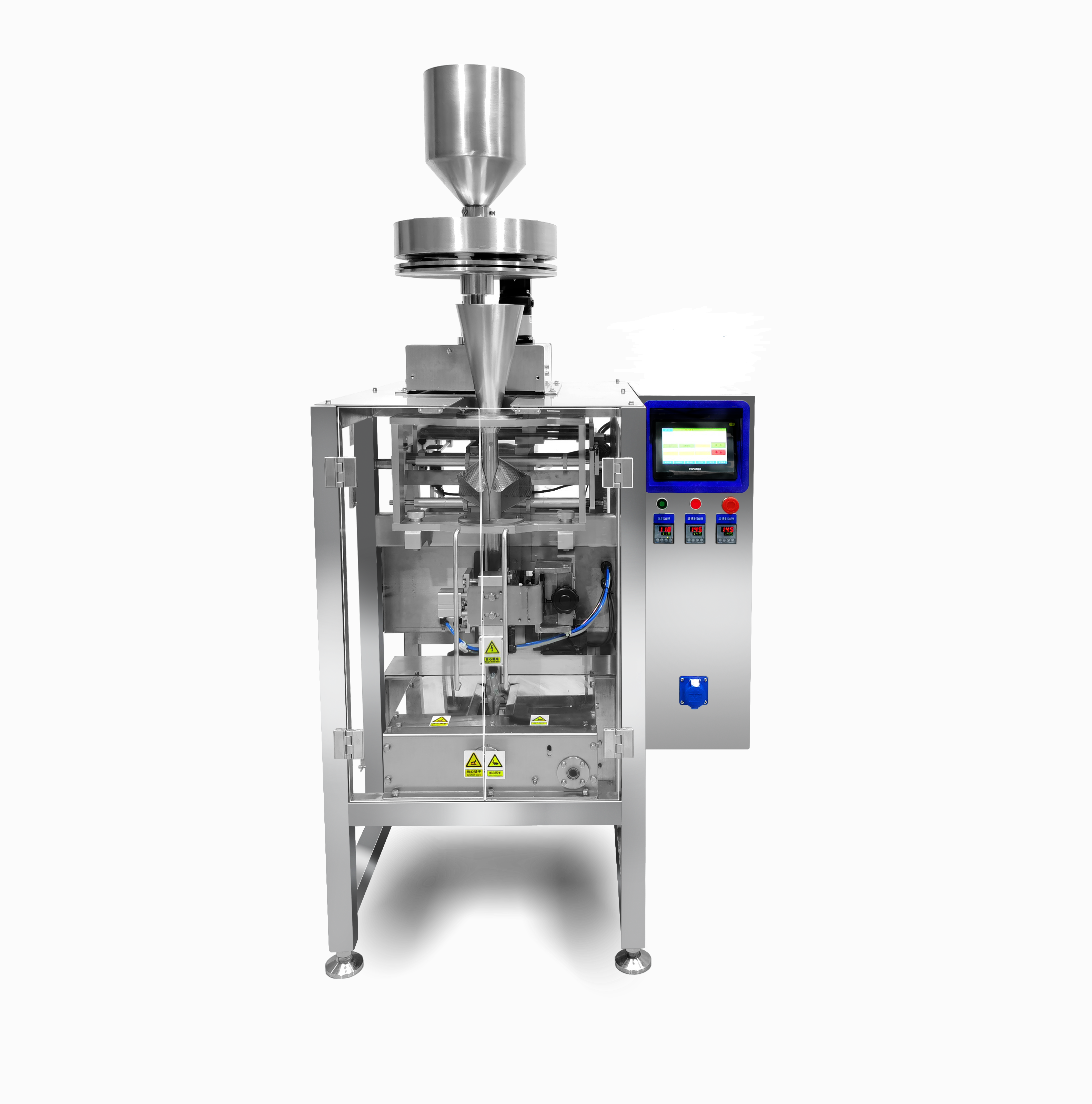

Vertical form fill and seal pounch packaging machines for nuts grain

Vertical form fill seal machine manufacturers-Wanbon Pack

Wanbon is an industry leading manufacturer of vertical form fill seal (VFFS) equipment for all types of flexible packaging.

Features on the VFFS machinery

1. Equipped with safety protection, in line with enterprise safety management requirements.
2. Intelligent temperature controller, accurate temperature control, ensure beautiful and smooth sealing.
3. PLC servo system, pneumatic control system, large display touch screen constitute the driving control core, to maximize the control precision, reliability and intelligence of the whole machine.
4. This machine and metering configuration can automatically complete metering. Feeding, bag filling, date printing, charging (exhaust), finished product transportation of the whole packaging process, and automatic completion of counting.
5. The touch screen can store the packing process parameters of different products, which can be used at any time without resetting when the products are replaced.

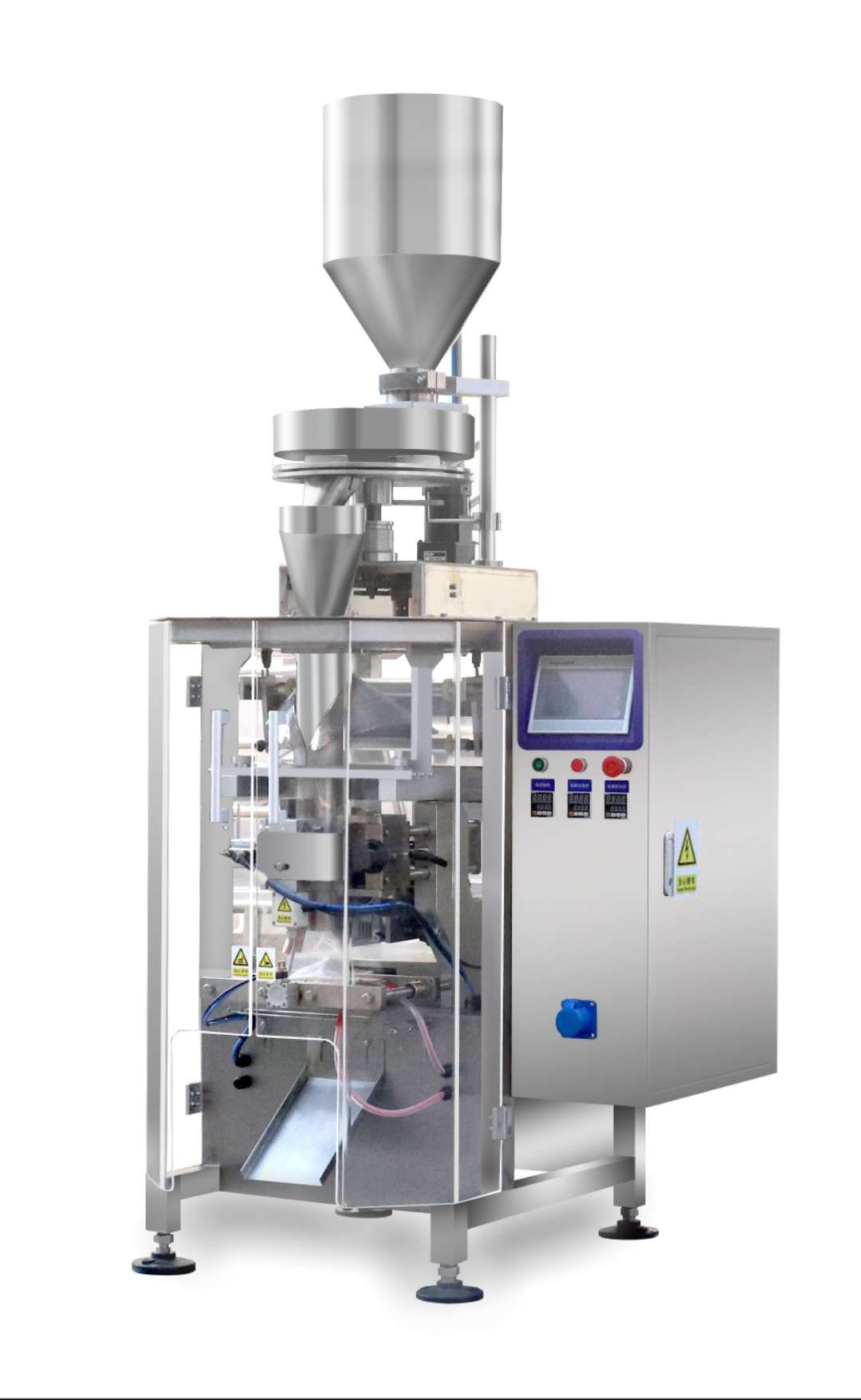

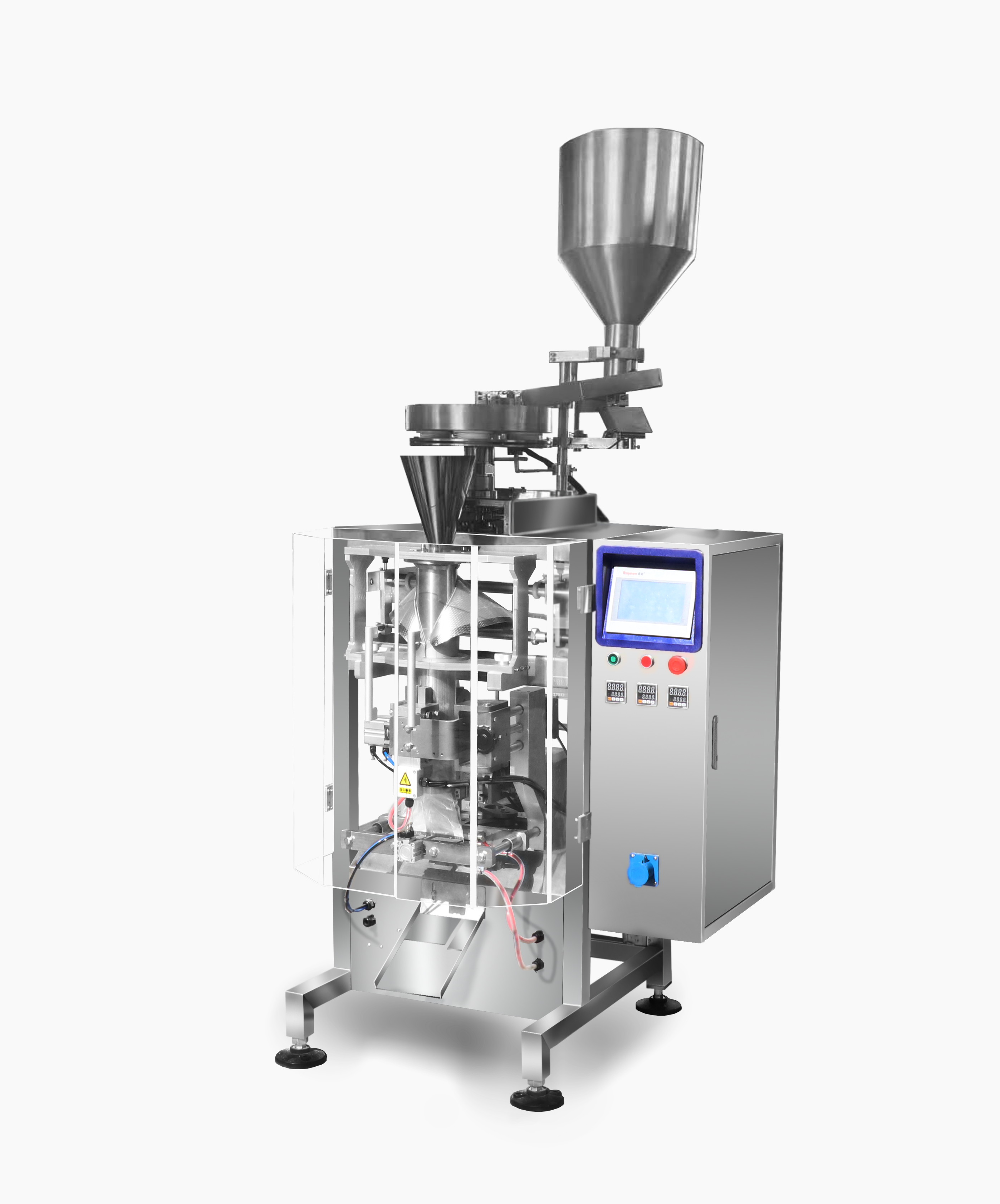

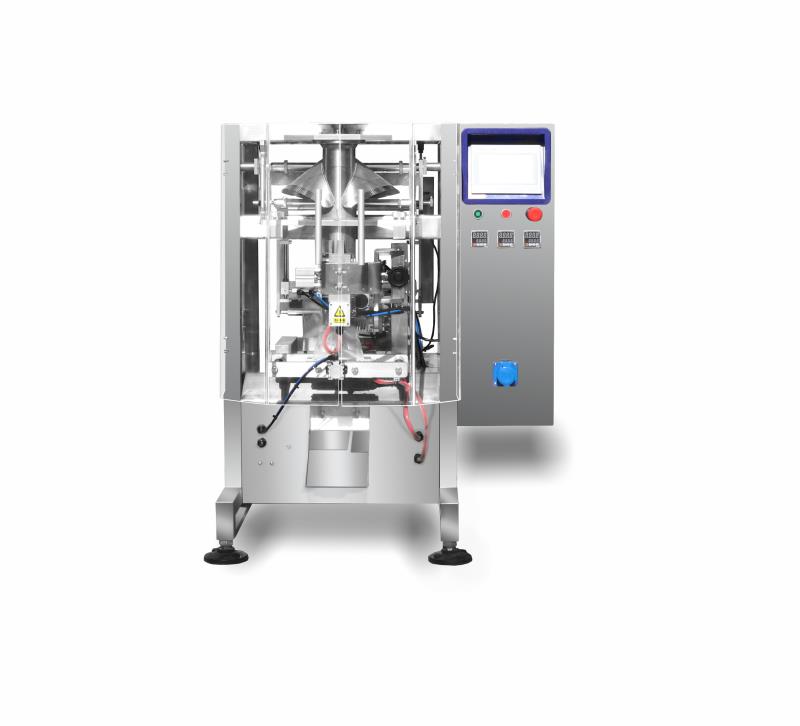

Vertical form fill and seal pounch packaging machines for nuts grain

Main Specification of vertical form fill and seal pouch machines

Membrane width. 320mm
Drive type Double servos
Bag making size (L)50-180mm, (W)50-150mm
Packaging speed 25-105 Bags/Min
Power supply 220V, 50-60Hz, 3Kw
Compressed air consumption 6-8 kg/m2~ 0.3 m3/min
Machine weight 350 kg
Machine dimension 966×1400×1318 (mm)
