Tobacco multi-pack machine Automatic Wrapping Machine WBG-SL380 Series

shisha cigarette
shisha cigarette

Tobacco multi-pack machine Automatic Wrapping Machine WBG-SL380 Series


We are a China manufacturer supplying precision engineered, versatile overwrapping machinery for a range of tobacco products including: *Single ......

Email: [email protected]


Product detail

Tobacco multi-pack machine Automatic Wrapping Machine WBG-SL380 Series

We are a China manufacturer supplying precision engineered, versatile overwrapping machinery for a range of tobacco products including:

*Single Carton Overwrapping

*Collating and bundling of HLP or soft packs into Clear / Naked Wrap formats

*Duty Free / Travel Retail Bundle Wrapping

*Cigar Tins and Display Boxes

*RYO Pouch Collating and Wrapping

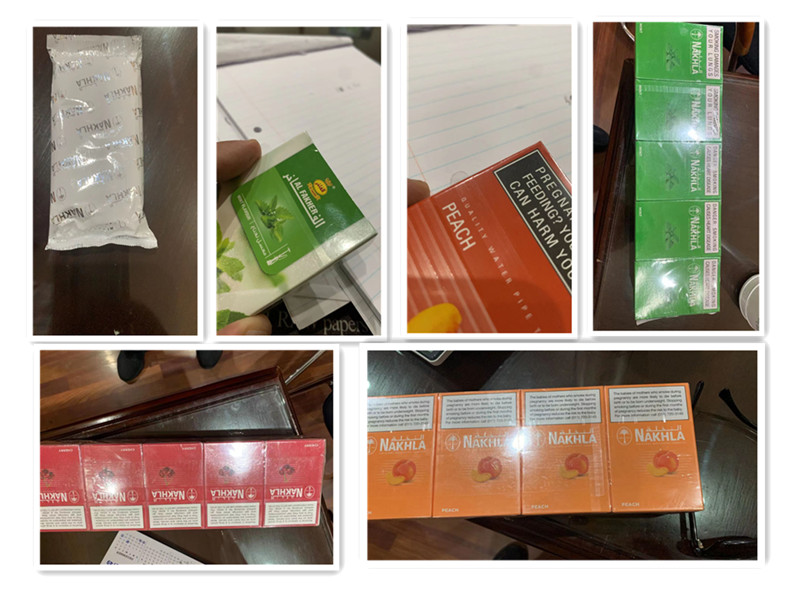

*Molasses / Shisha Pipe Tobaccos

*Vapour & E-Cigarettes

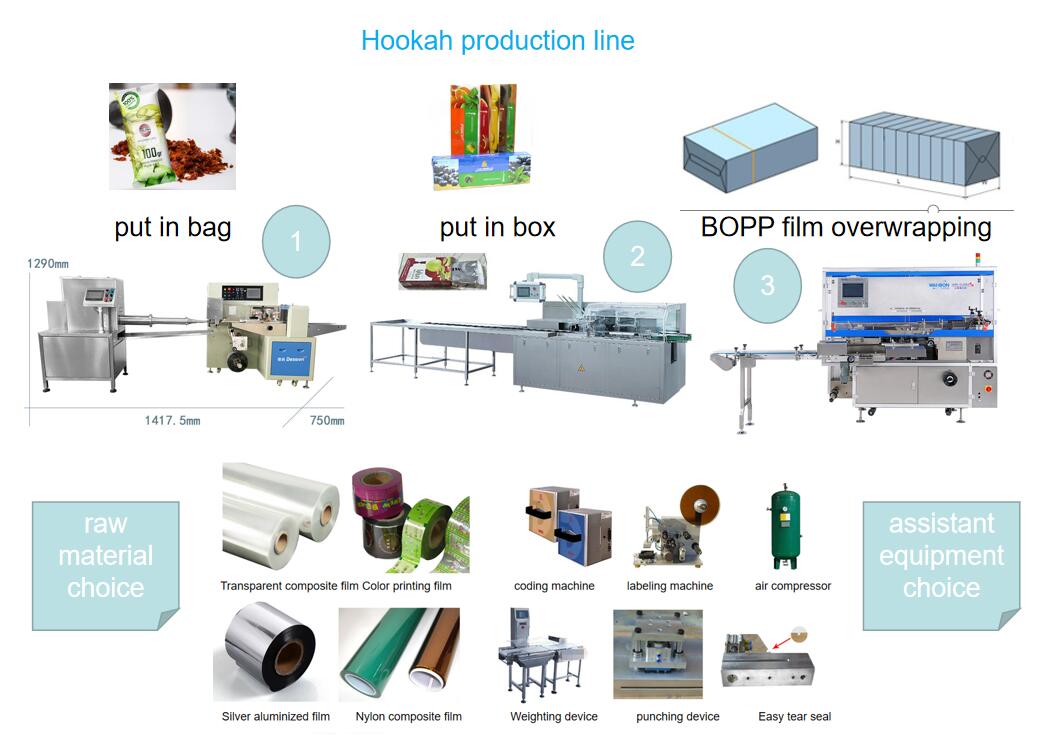

Hookah/Shisha packaging solution



Tobacco multi-pack machine Automatic Wrapping Machine WBG-SL380 Series



Product Features:

1. Fully sealed packaging: waterproof, moisture-proof, anti-pollution, anti-channeling.

2. Instant sealing, no material storage at the heat sealing station: similar to cold packaging, no effect on heat-sensitive pharmaceutical products.

3. Dual servo control system to ensure stable operation of the equipment and control static electricity generation.

4. Automatic: automatic feeding, stacking, sorting, packaging, heat sealing and counting.

5. The electrical control system is centered on the programmable controller PLC: to ensure stable and reliable operation of the equipment, and stable performance.

6. The packaging speed can be steplessly adjusted, and box packaging of different specifications (size, height, width) can be packed by replacing the folding cardboard.

Scope of Application:

This product is suitable for flat box automatic feeding, box erecting, sorting, packaging, heat sealing and counting.

The main technical parameters:

Project name 520 580
Packing Dimension L×W×H (mm) (80-300)×(70-130)×(30-120) (80-350)×(70-160)×(30-120)
Packing speed (packs/min) (30-50) (30-50)
Packing material BOPP or PVC BOPP or PVC
Inner hole diameter (mm) Φ75/0.021-0.028 Φ75/0.021-0.028
Air consumption (L/min) (20-30) (20-30)
Total power (kw) 2. 25 2.25
Integrated noise dB(A) <65 <65d
Dimension (mm) 1820×1341×1364 1820×1341×1364
Total weight (kg) 1000 1000
Power (V/HZ) 220V/50HZ 220V/50HZ
Hot sealing temperature (℃) 100-140 100-140

Tobacco multi-pack machine Automatic Wrapping Machine WBG-SL380 Series

Tobacco multi-pack machine Automatic Wrapping Machine WBG-SL380 Series
