Heat shrink packaging machine with pillow type wrapping machine
Package style: Product Features: 1. It is simple, reliable, stable performance. 2. The host machine adopts frequency controller, membrane motor ......
Email: [email protected]
Product detail
Heat shrink packaging machine with pillow type wrapping machine
Package style:
Product Features:
1. It is simple, reliable, stable performance.
2. The host machine adopts frequency controller, membrane motor is driven by servo motor.
3. The main electrical parts all adopt import components, such as Panasonic servo system, Siemens/Weinview HMI.
4. Packing position is adjustable, which can effectively prevent ironing the film in the time of packing.
5. Thermal shrinkage oven has efficient double temperature zones and stepless speed, can automatically control temperature. Efficient hot air circulation can ensure the quality of shrink.
Scope of Application:

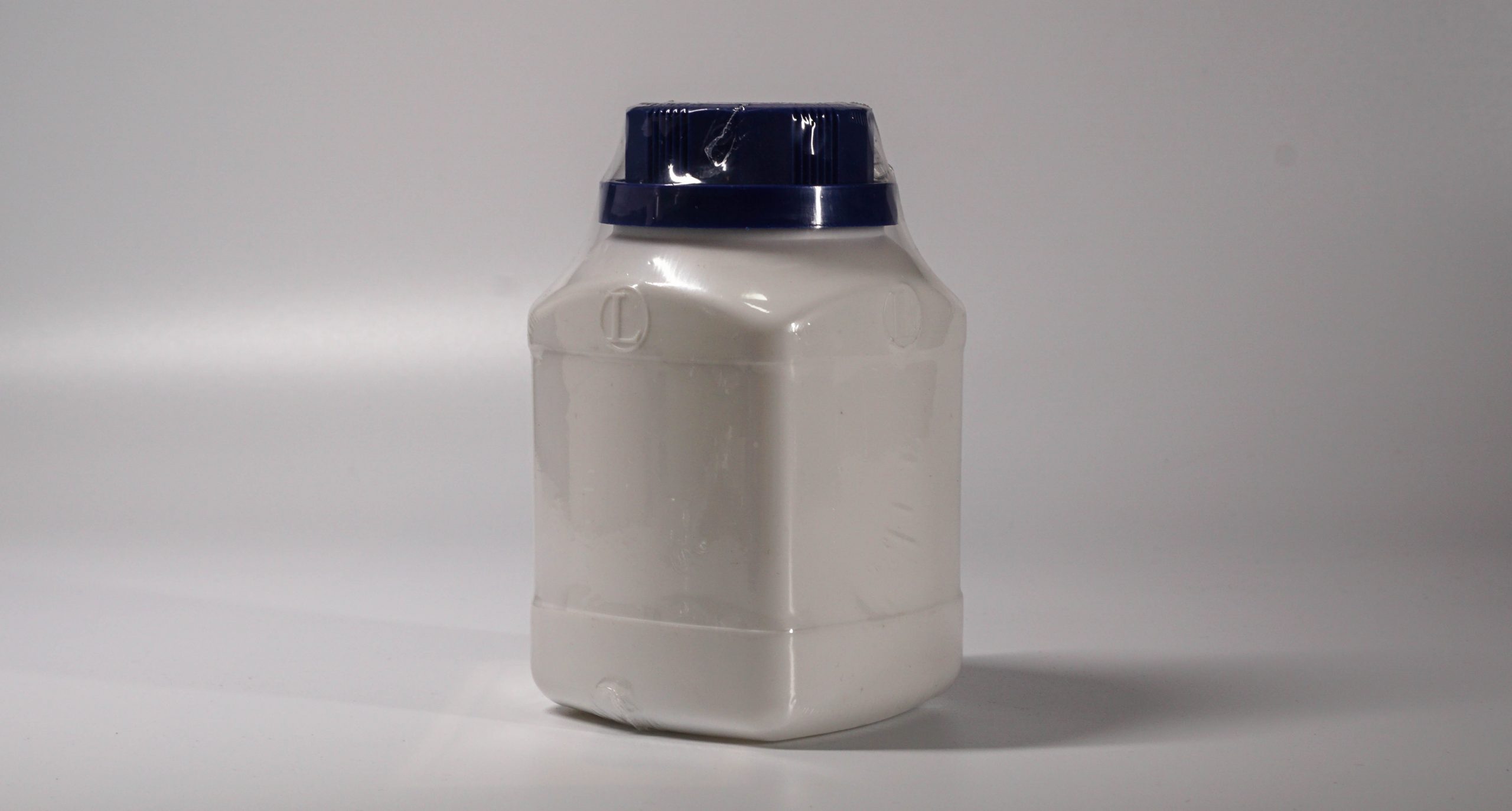

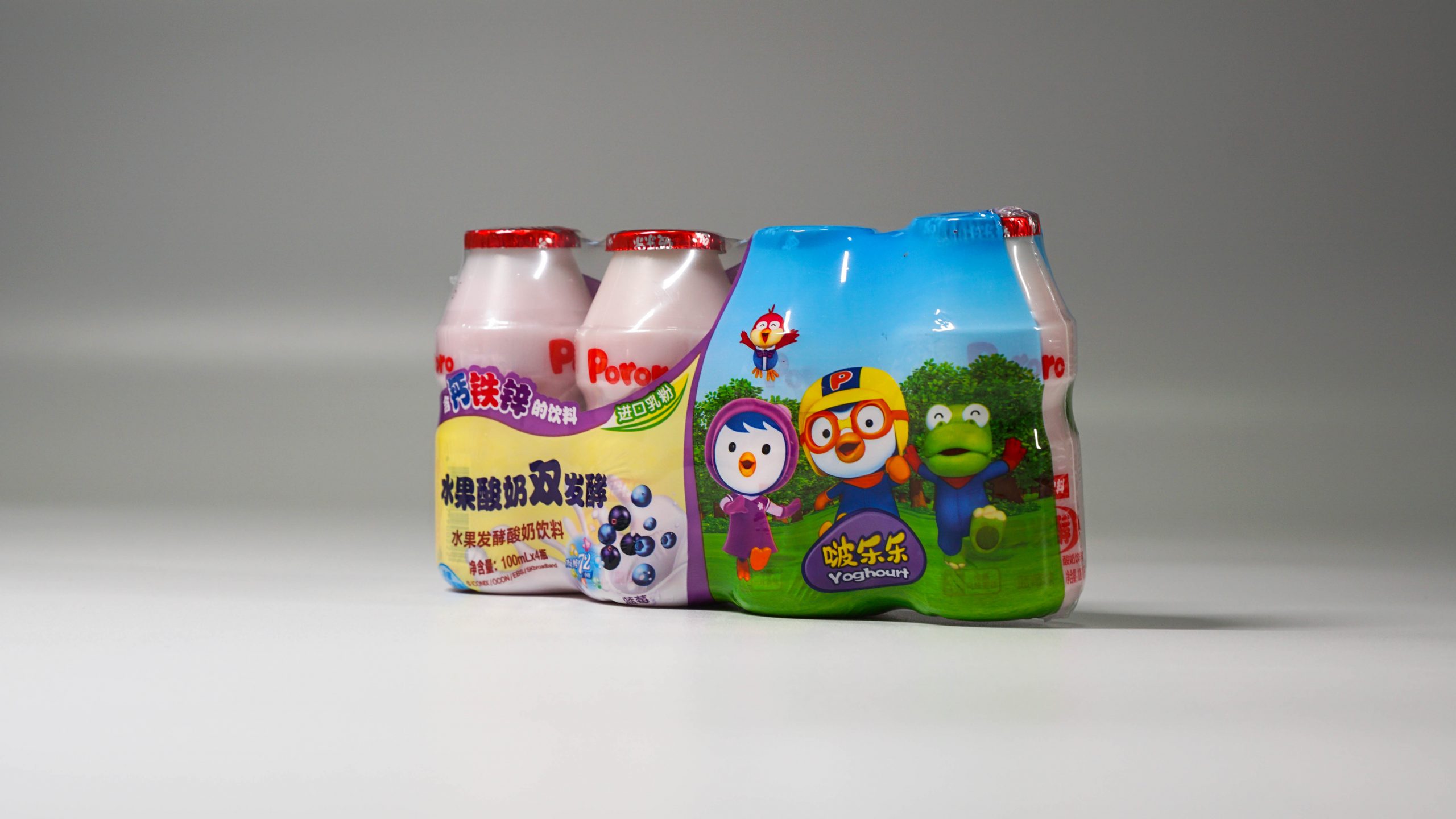

Suitable for outer shrink packaging of pill case, medicine bottle, bowl, beverage, daily chemical products, cosmetics and other regular or irregular products.
The main technical parameters:
| Model | WBZR450-99 | WBZR450-120 | WBZR450-150 | WBZR590 |
| Maximum (mm) | 430 | 430 | 430 | 570 |
| Packing speed | 30-180 | 30-150 | 30-120 | 30-120 |
| Bag length range (mm) | 75-400 | 100-450 | 120-450 | 150-500 |
| Packing width (mm) | 20-140 | 20-140 | 20-140 | 40-200 |
| Packing height (mm) | 10-40 | 10-45 | 40-70 | 40-100 |
| Power supply（V） | 220~380V 50HZ | 220~380V 50HZ | 220~380V 50HZ | 220~380V 50HZ |
| Total power（KW） | 15 | 15 | 15 | 15 |

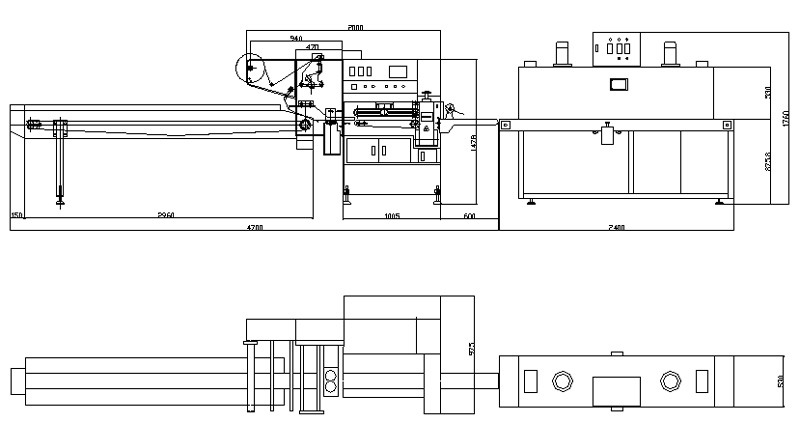

| Dimension (Length*width*height) mm | 7100*960*1420 | 7100*960*1420 | 7100*960*1420 | 7100*1200*1700 |
| Total weight（kg） | 1000 | 1000 | 1000 | 1200 |
